Carbon Steel oil level sight glass

Hexagon Carbon Steel Oil level Sight Glass Plugs NPT Thread Plated

Hexagon Carbon Steel Oil level Sight Glass Plugs UNF Thread
INQUIRY

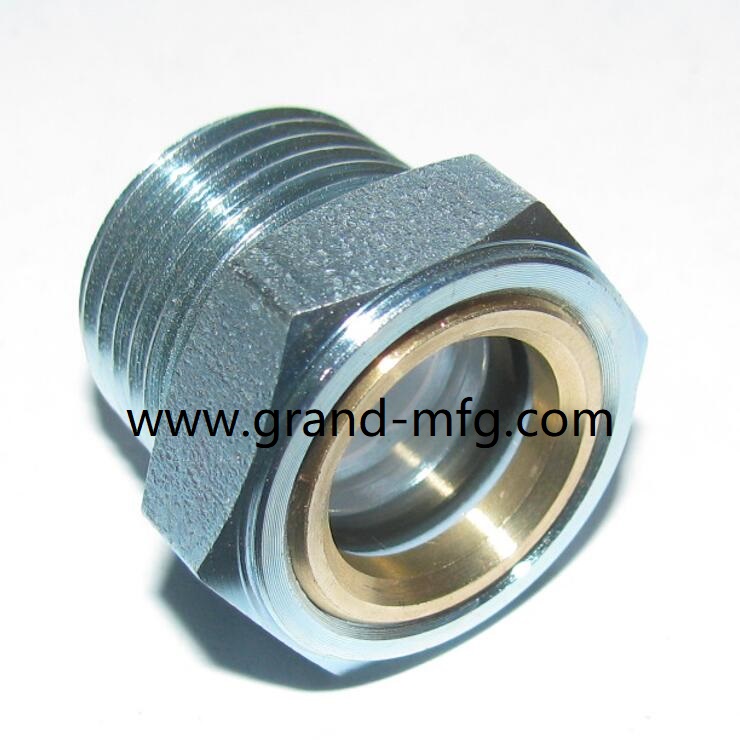

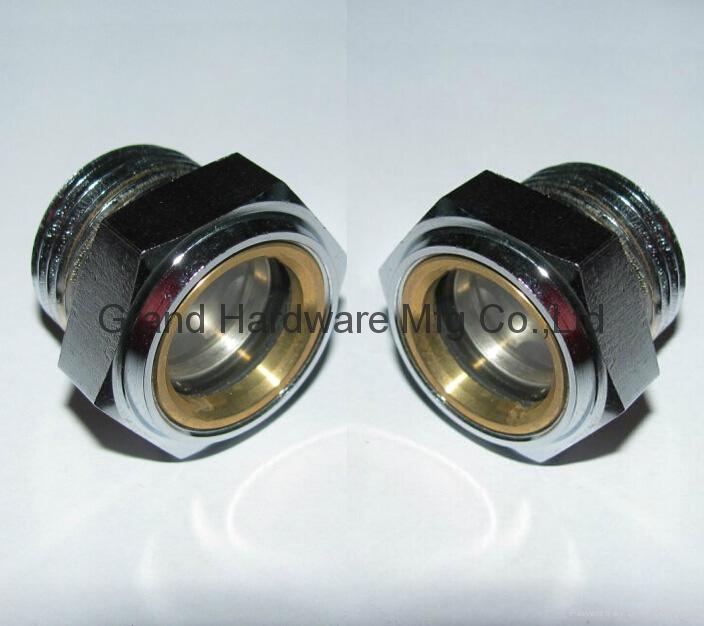

Hexagon Steel Oil level sight glass(BSP Thread)

Material Body: Steel Plated(Zinc plated,Nickel plated and chrome plated)

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 8 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

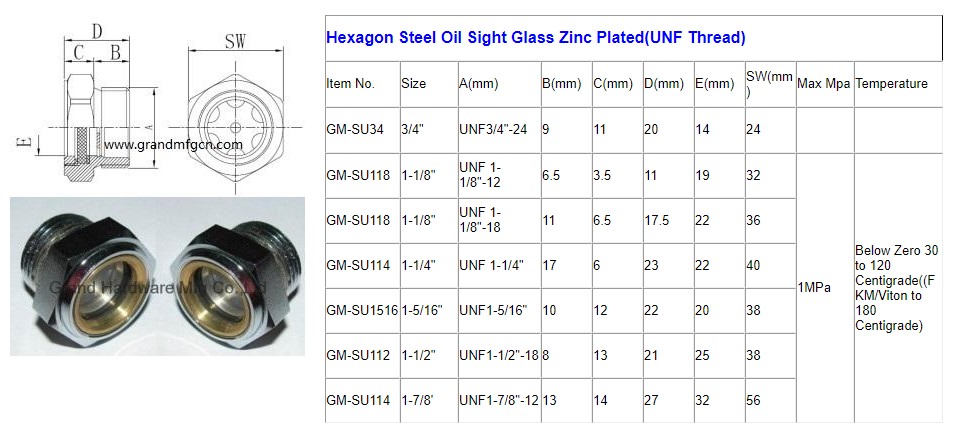

Hexagon Steel Oil Sight Glass Zinc Plated(UNF Thread).JPG
