Brass oil level sight glass

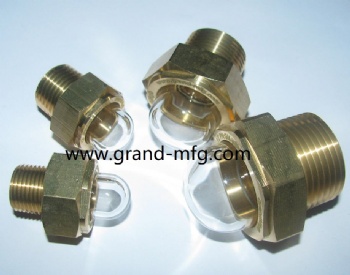

Domed NPT1/2 Safety Brass Sight Glass Assembly for Coolant Level

Domed NPT1/2 Safety Brass Sight Glass Assembly for Coolant Level

Brass Oil level sight glass
forklift truck radiator oil sight glasses
Oil Level Sight Glass Versatile and Resistant
to High Temperatures and Pressure
Aluminum Sight Glass with Natural Tempered or
Borosilicate Glass Suitable for Various Applications
Custom Sizes Available
INQUIRY

Brass Oil level sight glass

Material Body: Brass

O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

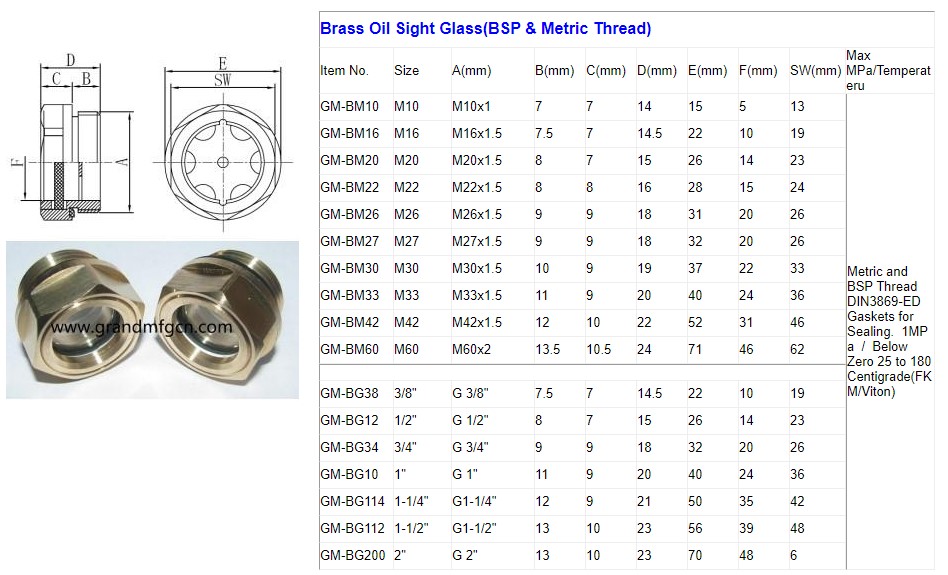

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. Domed Head Hexagon Oil Sight Glass (Metric,BSP & NPT)1.JPG
