Stainless steel oil sight glass

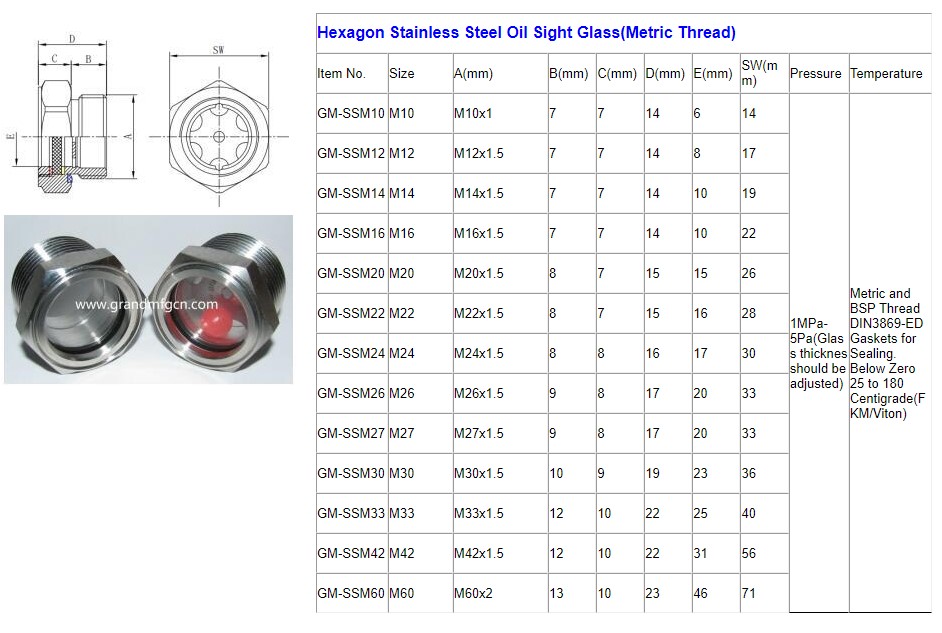

M33x1.5 Hexagon Stainless Steel 304 Oil Sight Glass(Metric-Thread)

M33x1.5 Hexagon Stainless Steel 304 Oil Sight Glass
(Metric Thread)
INQUIRY

Stainless Steel 304 Oil level sight glass(NPT Thread)

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 220'C

Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

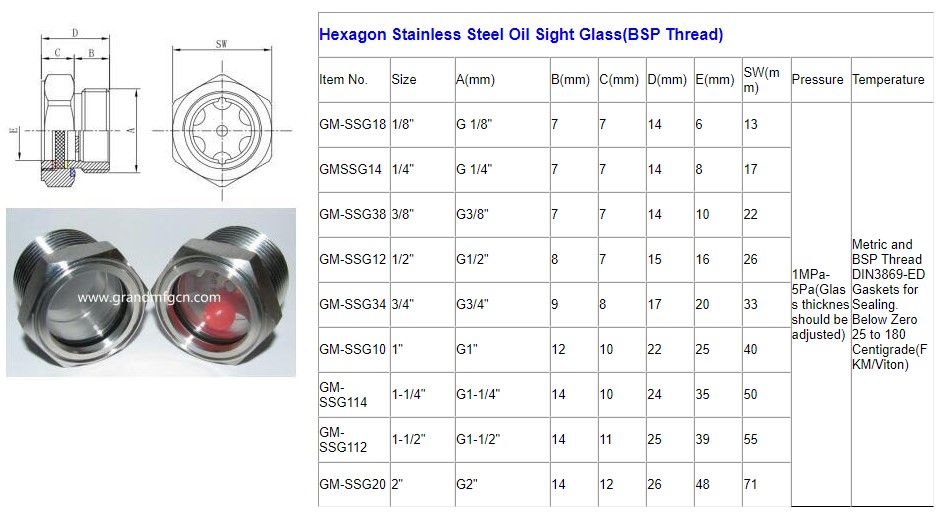

Size： Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

BSP SS SIGHTGLASS.JPG
